CKD Pulse Blow Valve NP1X-25AX172

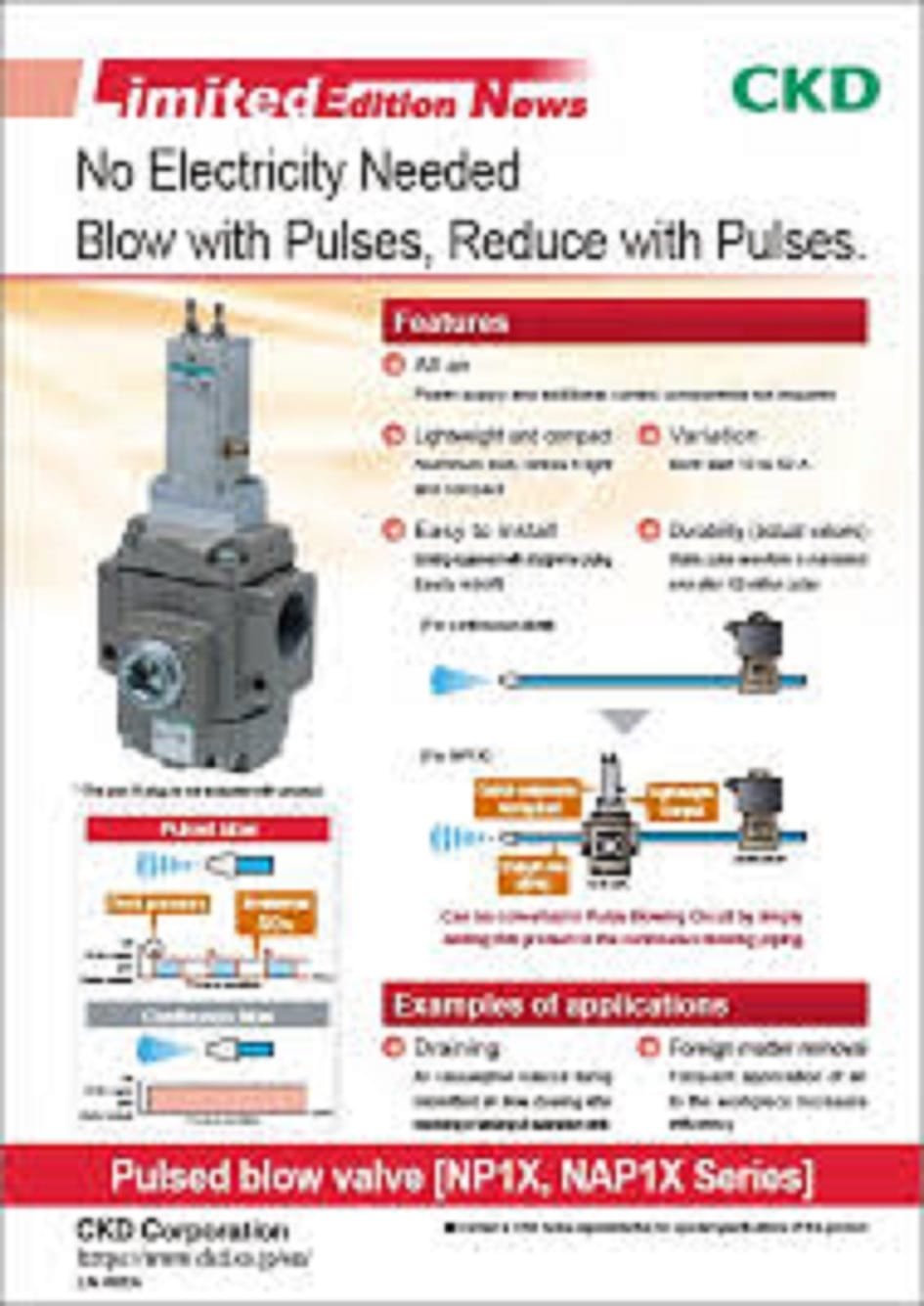

All air Power supply and additional control components not required Lightweight and compact Aluminum body keeps it light and compact Easy to install Existing equipment with straight-line piping. Easy retrofitting. [For continuous blow] Variation Bore size 10 to 50 A Durability (actual values) Stable pulse waveform is maintained even after 100 million cycles [For NP1X] * The port R plug is not included with product. Pulsed blow Air reduction rate 50% ON (Valve open) OFF (Valve closed) Control components not required Lightweight/ Compact Straight-line piping 10 to 50A On/off valve Can be converted to Pulse Blowing Circuit by simply adding this product to the continuous blowing piping. Pressure waveform Time Continuous blow ON (Valve open) OFF (Valve closed) Pressure waveform Time Examples of applications Draining Air consumption reduced during intermittent air blow cleaning after machining or washing of automotive parts Foreign matter removal Frequent application of air to the workpiece increases efficiency Pulsed blow valve [NP1X, NAP1X Series] https://www.ckd.co.jp/en/ Contact a CKD Sales representative for special specifications of this product. LN-002A2023.8 Adjustment section Dial High Low AIR PULSE TIMER H LH L C1 C2 C1 Adjust OFF time ON OFF OFF time Short (H) Long (L) C2 Adjust ON time ON OFF ON time Short (H) Long (L) ** Knob adjustment method for continuous blow without pulse: Turn
