Ordering data
| Product type description | A-K5P-M12-S-G-5M-BK-2-X-A-4-69 |
| Article number (order number) | 103010816 |
| EAN (European Article Number) | 4030661474366 |
| eCl@ss number, version 12.0 | 27-06-03-11 |
| eCl@ss number, version 11.0 | 27-06-03-11 |
| eCl@ss number, version 9.0 | 27-06-03-11 |
| ETIM number, version 7.0 | EC001855 |
| ETIM number, version 6.0 | EC001855 |
Approvals – Standards
| Certificates | cULus |
General data
| Standards | EN IEC 61076-2-101 |
| Gross weight | 180 g |
General data – Features
| Halogen free | Yes |
| Cable drag chain suitable | Yes |
| Number of cable wires | 5 |
Mechanical data
| Tightening torque, maximum | 1 Nm |
Mechanical data – Connection technique
| Length of cable | 5 m |
| Number of cable wires | 5 |
| Wire cross-section | 0.34 mm2 |
| Cable diameter | 5.2 mm |
| Bending radius (fixed) | 5 x Ø-cable |
| Bending radius (repeated) | 10 x Ø-cable |
| Colour of the Cable mantle | Black |
| Material of the Cable mantle | PUR |

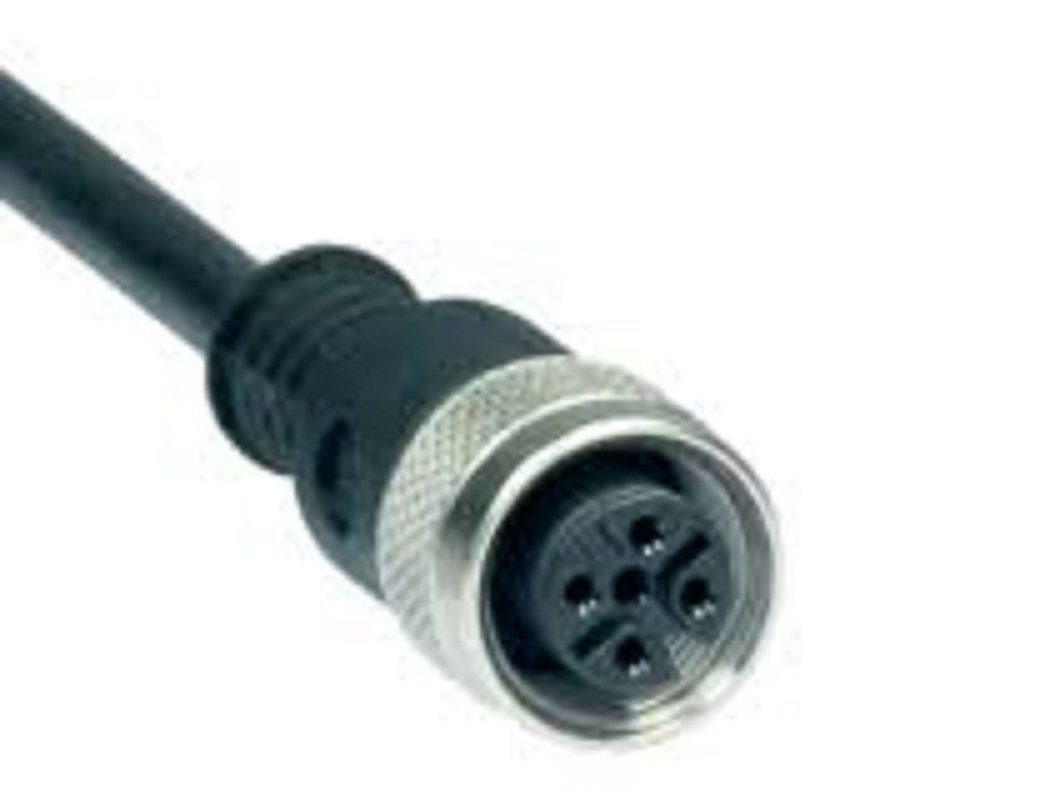

Mechanical data – connector side A
| Connector typ | Female connector, M12 |
| Design | straight |
| Connector coding | A |
| Connector latching | Screw locking |
| Material of the gland | Metal, CuZn, nickel-plated |
| Material of the handle | Plastic, TPU |
| Colour of the handle | Black |
Ambient conditions
| Degree of protection | IP65 IP67 IP69 |
| Ambient temperature (Connector) | -30 … +90 °C |
| Ambient temperature (fixed) | -50 … +90 °C |
| Umgebungstemperatur (bewegt) | -30 … +90 °C |
| Ambient temperature (drag chain) | -25 … +60 °C |
Electrical data
| Thermal test current | 4 A |
| Rated operating voltage | 60 VAC |
| Rated operating voltage | 60 VDC |
| Operating current | 4,000 mA |
Pin assignment
| PIN 1 | Brown |
| PIN 2 | White |
| PIN 3 | Blue |
| PIN 4 | Black |
| PIN 5 | Grey |
