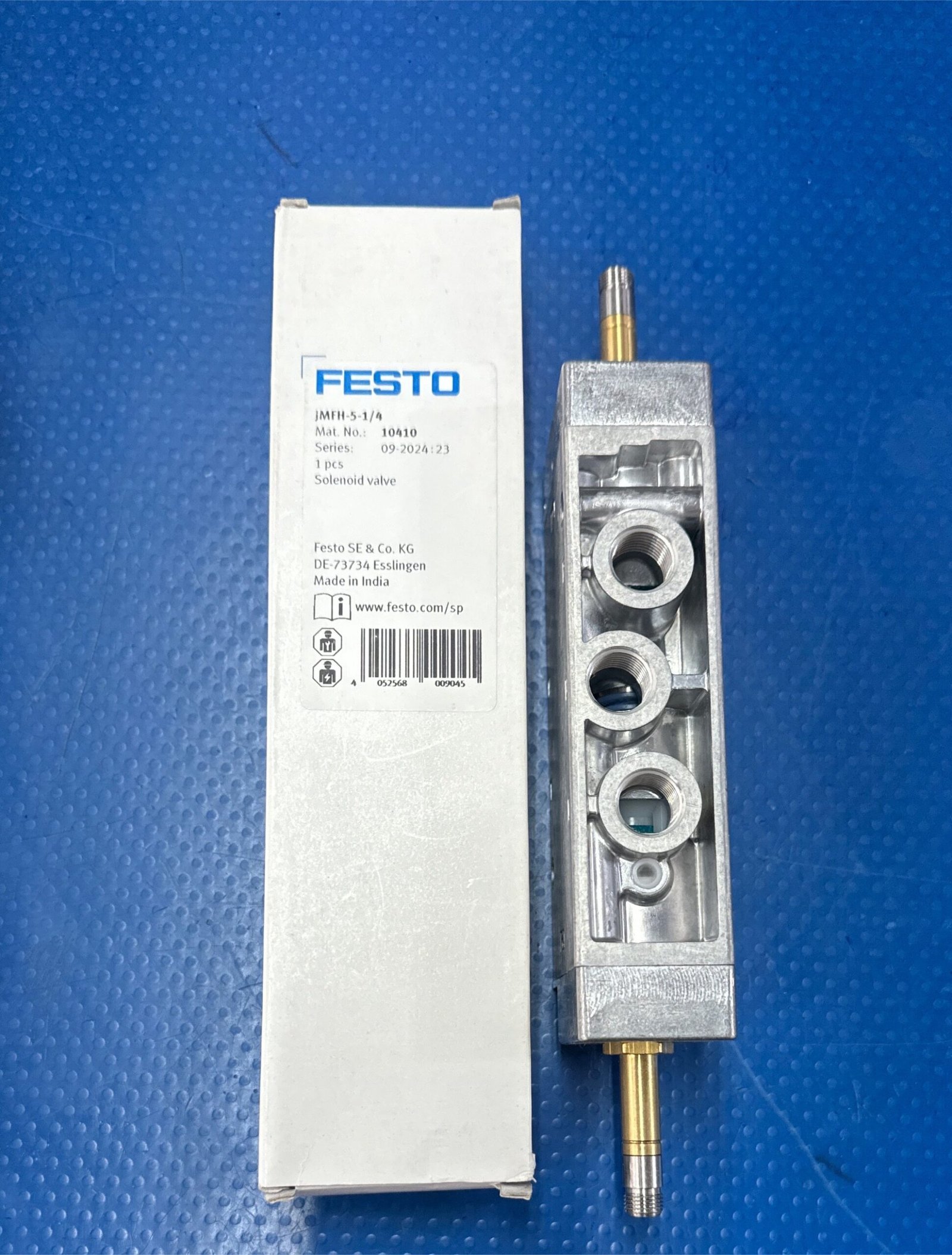

0.25 inch Jmfh-5-1/4 Solenoid Valve – Product Overview
Valve Size0.25 inch
MediaAir
End Connection TypeThreaded
Automation GradeAutomatic

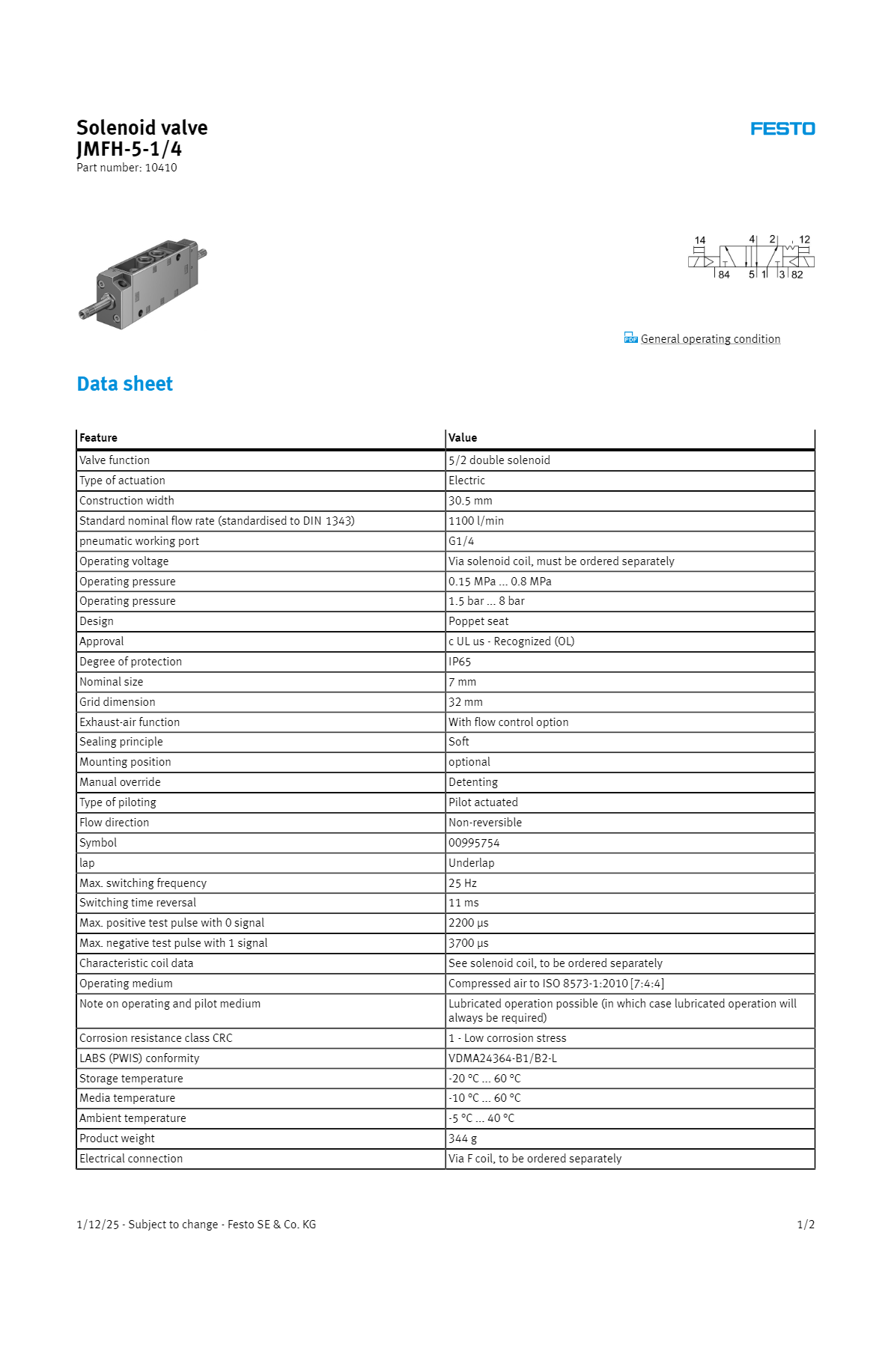

Description
- Valve function5/2 double solenoid
- Type of actuationElectric
- Construction width30.5 mm
- Standard nominal flow rate (standardised to DIN 1343)1100 l/min
- pneumatic working portG1/4
- Operating voltageVia solenoid coil, must be ordered separately
- Operating pressure0.15 MPa ... 0.8 MPa
- Operating pressure1.5 bar ... 8 bar
- DesignPoppet seat
- Approvalc UL us - Recognized (OL)
- Degree of protectionIP65
- Nominal size7 mm
- Grid dimension32 mm
- Exhaust-air functionWith flow control option
- Sealing principleSoft
- Mounting positionoptional
- Manual overrideDetenting
- Type of pilotingPilot actuated
- Flow directionNon-reversible
- Symbol00995754
- lapUnderlap
- Max. switching frequency25 Hz
- Switching time reversal11 ms
- Max. positive test pulse with 0 signal2200 µs
- Max. negative test pulse with 1 signal3700 µs
- Characteristic coil dataSee solenoid coil, to be ordered separately
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC1 - Low corrosion stress
Category: all product
Product Details
Product Name0.25 inch Jmfh-5-1/4 Solenoid Valve
Categoryall product
ConditionNew
AvailabilityIn stock
Available QuantityAvailable – confirm quantity
Product specifications are based on the information available in our catalogue. Please verify the model, technical details, price and delivery time before placing an order.
