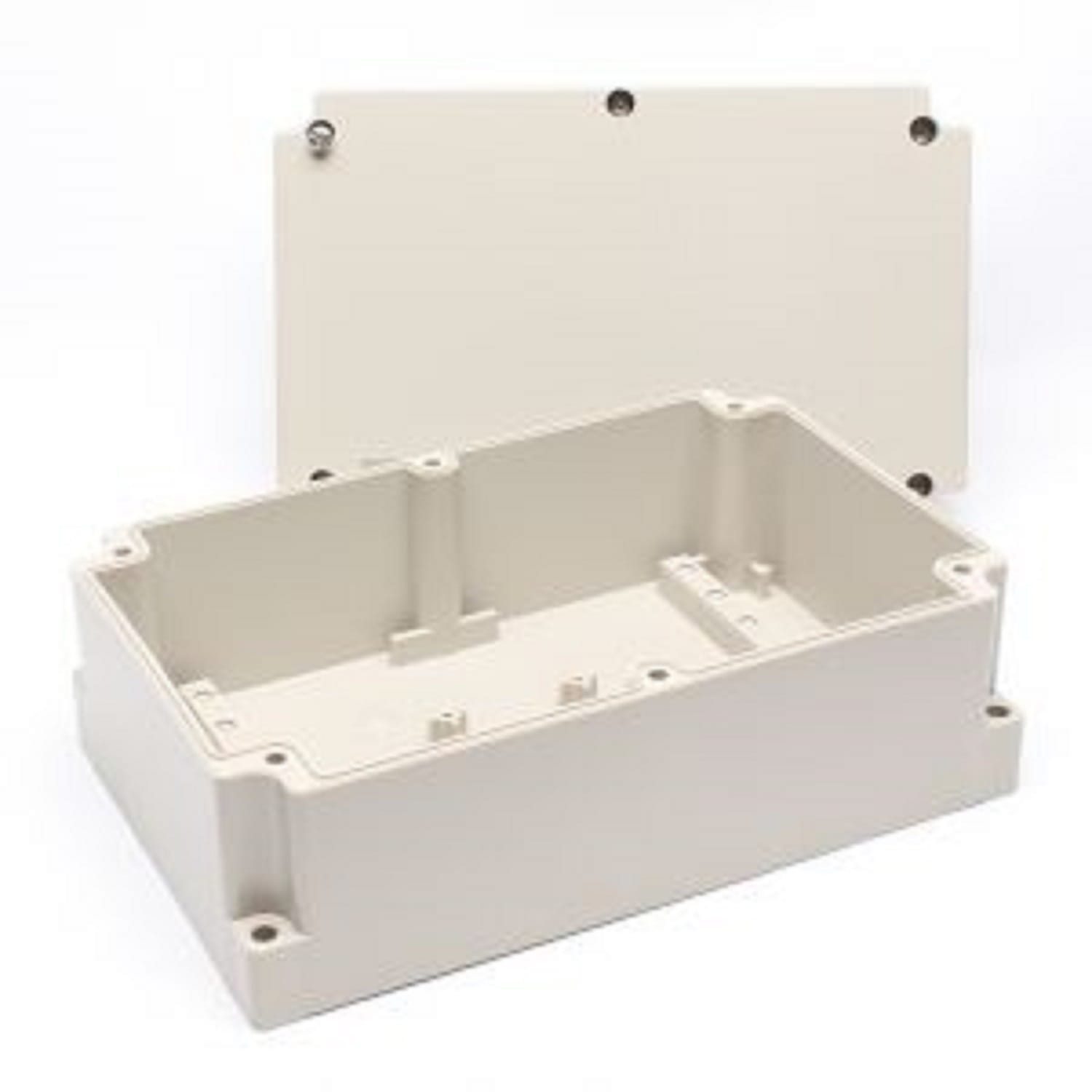

BOXTM-2000 TOYOGIKEN

Rated voltage AC,DC 600V Rated current 15A（BOXTM-401: 20A）Insulation resistance 100MΩ or more（DC500V）Withstand voltage AC 2500V / min Applicable wire 2.0㎟ / MAX Terminal Screw 0.8～1.4N・m Lid M3　Lid M4　0.5～0.65N・m Protection Rating 1.0～1.2N・m IP67 Ambient temperature-25℃～+100℃（No freezing and condensations）Relative humidity 45%～85% Tightening torque Ethylene glycol Ester Halogenated hydrocarbon Phenol Cresol Liquid ammonia Oxygenated water Weak acid Strong acid Weak alkali Strong alkali ■Specifications ■Chemical resistance ■Materials Liquid solution Liquid solution Water Mineral oil Heating oil Gasoline Anti-corrosion oil Vegetal oil Acetone Benzene Carbon tetrachloride Alcohol Acetic Ether Chemical Resistant Oil Resistant IP67RoHS Compliant Direct mounting type ◆Standard IEC/DIN 35㎜ rail mounting type BOXTM Series ◆Popular BOX main body PBT（UL94V-0）5Y7/1 Lid PBT（UL94V-0）5Y7/1 Gasket NBR Lid fixing screw SUS Coil springNut Brass（Ni plating）HingeTerminal block main body PBT（UL94V-0）Terminal Screw SWCH（Zn＋trivalent chromate-plating）M3.5×8L KTW: M3.5×6.7L Conductive plate Brass（Ni plating）

MODEL MODEL :-BOXTM-401 4〇N/A 2 CTG16 P.25 BOXTM-801 8〇N/A 3 CTG22 P.26 BOXTM-802 8〇N/A 3 CTG16 P.26　BOXTM-1001 10〇N/A 0-P.28 BOXTM-1002 10〇N/A 2 φ21 P.28 BOXTM-1003 10〇N/A 2 φ21 P.29 BOXTM-2000 Not Terminal Block〇N/A 0-P.30 BOXTM-2001 20〇N/A 0-P.30 BOXTM-2002 20〇N/A 6 4-φ21 / 2-φ27 P.31 BOXTM-2003 Not Terminal Block〇N/A 6 4-φ21 / 2-φ27 P.31 Part No. No. of T/B Poles Direct mounting IEC/DIN 35㎜Rail mounting IEC/DIN 35㎜Rail mounting No. of Holes Hole Size Page BOXTM-60L Not Terminal Block〇〇0-P.33 BOXTM-60H Not Terminal Block〇〇0-P.33 BOXTM-61L 6〇〇0-P.33 BOXTM-61H 6〇〇0-P.33 BOXTM-110L Not Terminal Block〇〇0-P.34 BOXTM-110H Not Terminal Block〇〇0-P.34 BOXTM-111L 11〇〇0-P.34 BOXTM-111H 11〇〇0-P.34 BOXTM-220L Not Terminal Block〇〇0-P.35 BOXTM-220H Not Terminal Block〇〇0-P.35 BOXTM-221L 22〇〇0-P.35 BOXTM-221H
